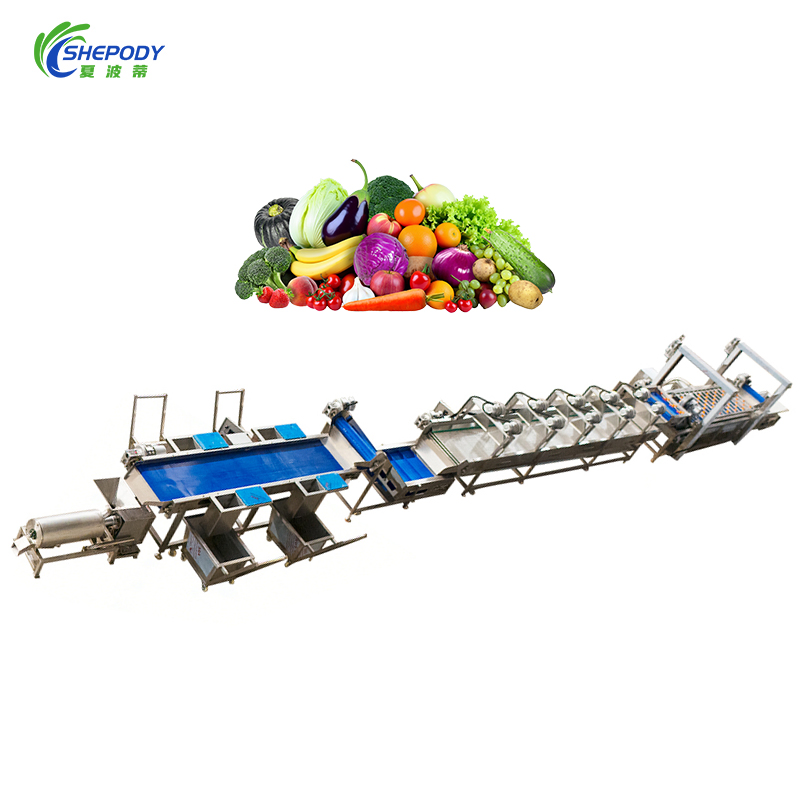

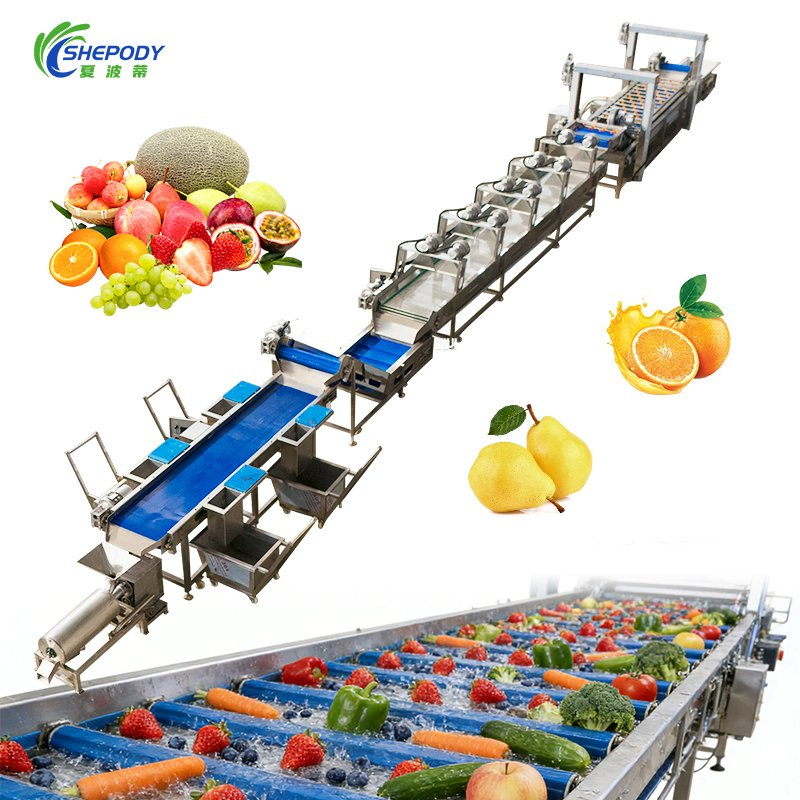

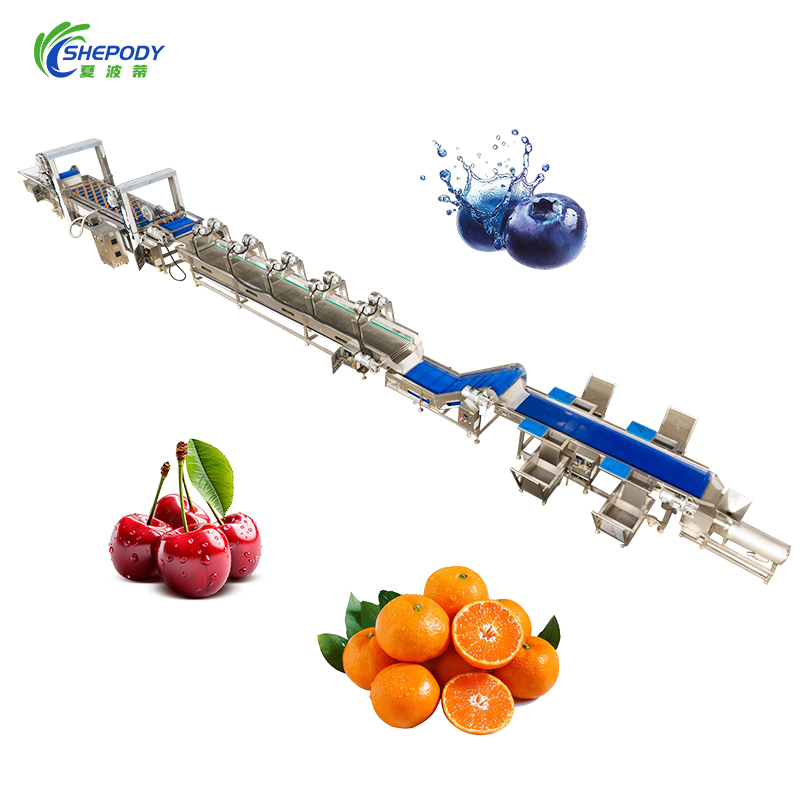

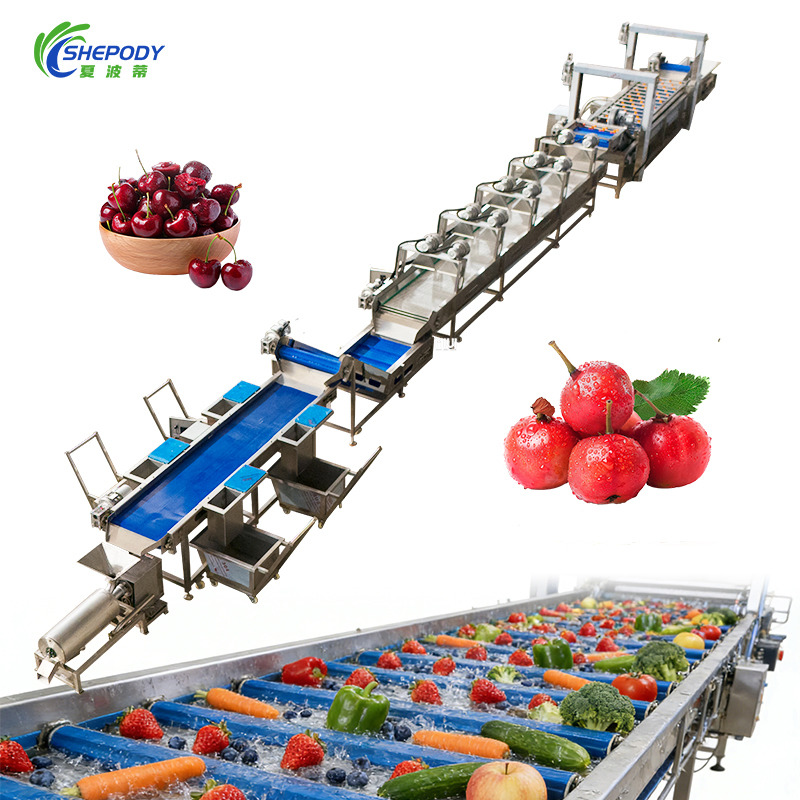

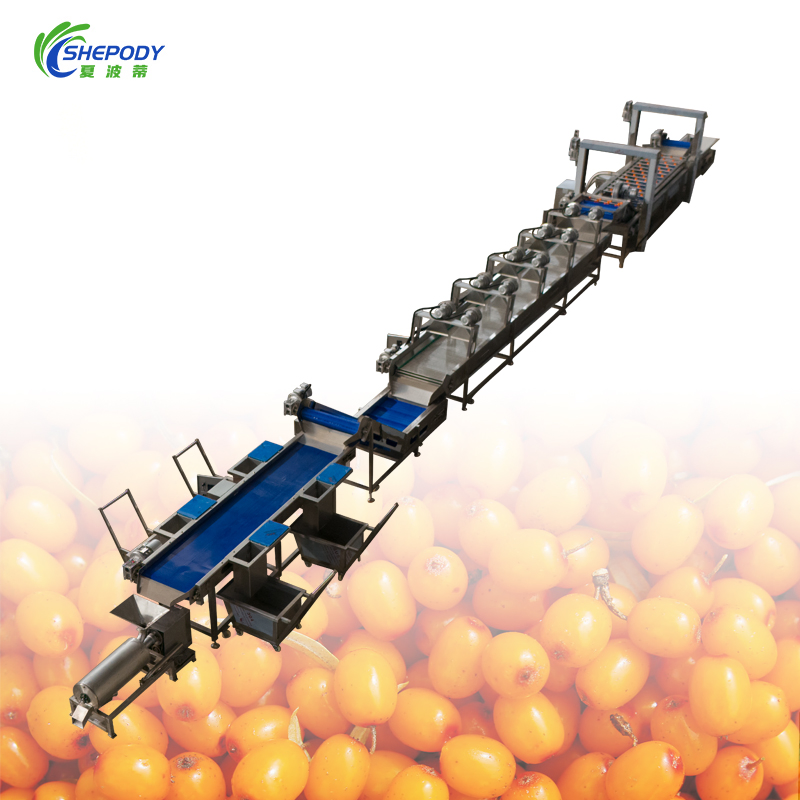

1500kg Fruit and Vegetable Washing Cleaning Processing Line for Quality Assurance

التخصيص: متاح
خدمة ما بعد البيع: دعم الفحص والاختبار
الضمان: سنة واحدة

وصف المنتج

  • ملخص
  • وصف المنتج
  • المواصفات الفنية
  • ملف التعريف
  • الشهادات
  • زيارات العملاء
  • آراء المشترين
  • التعبئة والتسليم
  • الأسئلة الشائعة

المعلومات الأساسية

النوع غسالة أوتوماتيكية
الجهد الكهربائي 220 فولت / 380 فولت
القوة 0.75 كيلووات
حسب الطلب مخصصة
الاسم خط غسيل الفاكهة والخضار
السعة 3000 كجم/ساعة
مادة الماكينة 304 فولاذ لا يصدأ
الوظيفة غسيل الفواكه والخضار والمأكولات البحرية
حزمة النقل حقيبة خشبية
الأصل الصين
القدرة الإنتاجية 3000 كجم/ساعة

وصف المنتج - Product Description

Washing Cleaning Processing Line

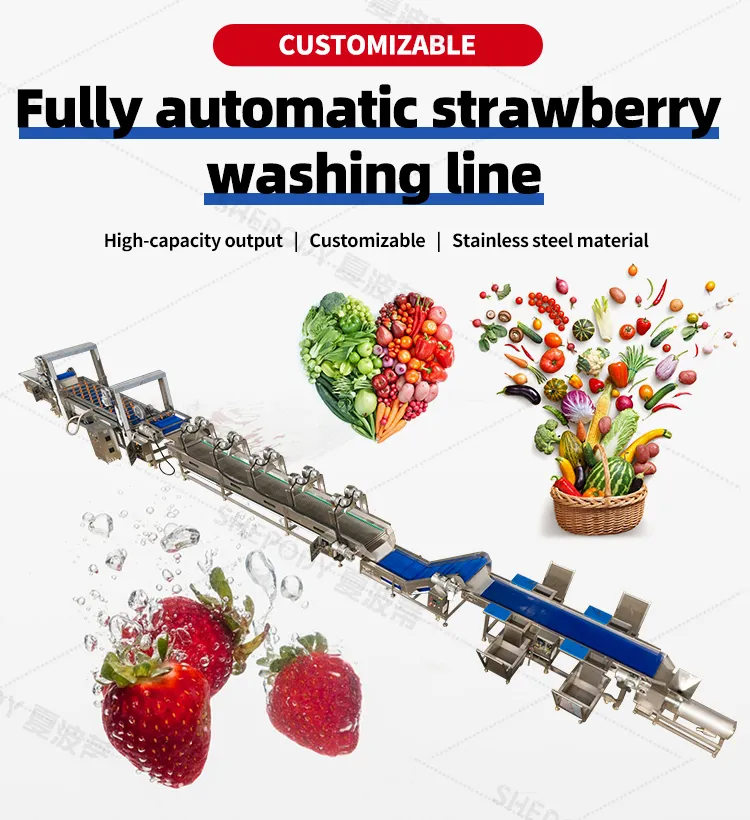

Product Description Details
Our fully automatic fruit and vegetable washing line is equipped with a complete set of processing procedures, including elevating, bubble washing, tumble drying, sorting and pulping. It is highly versatile and capable of washing a wide range of products, such as:
Fruits:

strawberry, mango, orange, blueberry, grape, apricot, tomato, avocado, jujube, date, apple, kiwi, lemon, rambutan, passion fruit, citrus, peach, pomegranate, cherry, melon, dragon fruit, etc.

Leafy Vegetables:

spinach, lettuce, celery, amaranth, coriander, mustard, cabbage, chives, bok choy, spinach, garland chrysanthemum, water spinach, kale, cauliflower, purple cabbage, crown daisy, etc.

Root Vegetables:

potatoes, cassava, sweet potatoes, carrots, cucumbers, gingers, yams, lotus root, chilis, etc.

Rhizome Medicinal Materials:

ginseng, angelica, astragalus, kava, paeonia lactiflora, ophiopogon japonicus, hay, codonopsis pilosula, polygonatum sibiricum, etc.

Seafood:

fish, shrimp, crabs, crayfish, clams, scallops, oysters, etc.

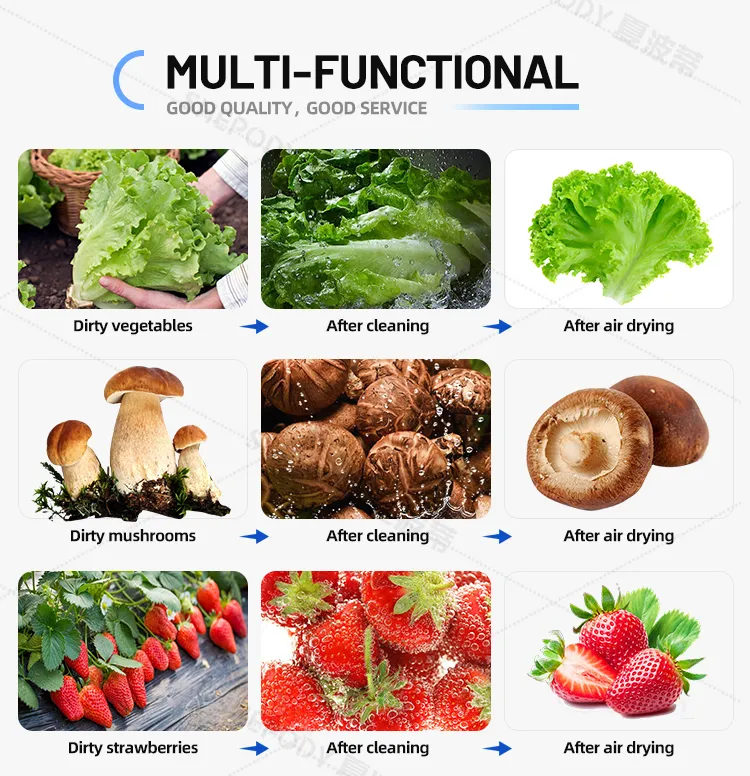

Washing Line Layout

الميزات الرئيسية - Features

SS304 bearings and frame: High quality food-safe stainless steel construction.
High Efficiency, Energy Saving: The bucket elevator is equipped with a circulating water system to save water.
Easy to clean internal parts: The bubble washing machine is equipped with a lifting mechanism (hydraulic or wire rope) for the mesh belt frame, allowing for easy cleaning of the interior.
Adjustable speed: The picking line features adjustable conveying speed, smooth operation, and is easy to maintain and clean.
Long service life and low failure rate: Utilizes renowned electrical components.
High counting precision: Equipped with a high-sensitivity electromagnetic force sensor, it achieves a single-bucket weighing resolution of 0.01g and uses algorithms to intelligently combine weights from multiple buckets to match the target weight.

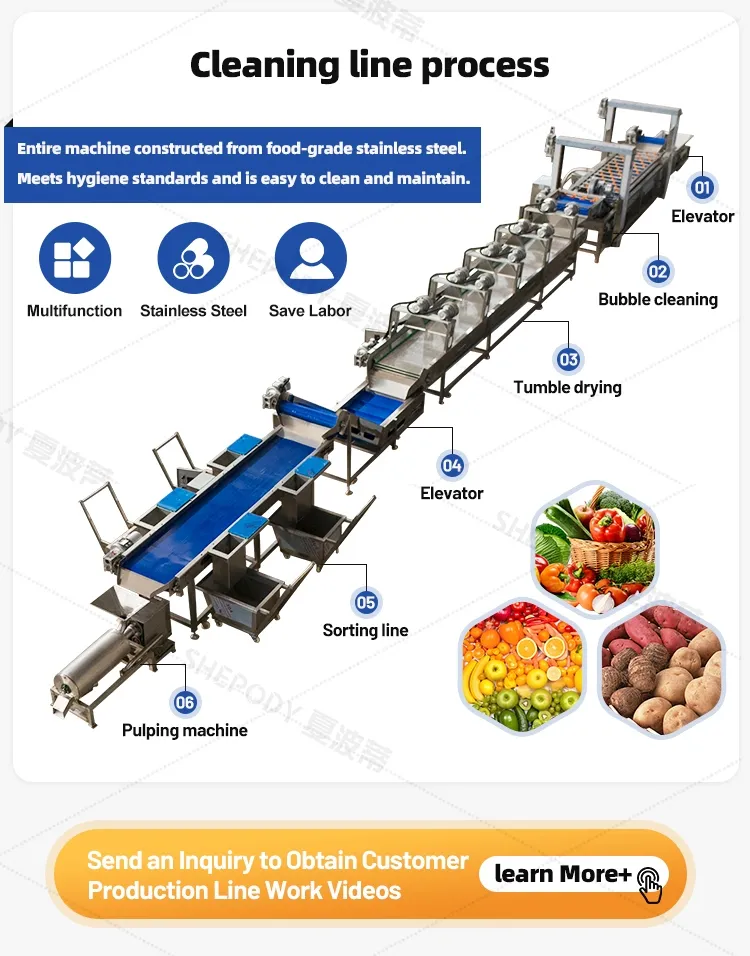

Washing Processing Line Flow

المواصفات الفنية - Specification

NO. Machine Name Power Dimension
1 PU Elevator 0.75kw 2400*800*1800mm
2 Vibrating Machine 0.5kw 2000*1000*1600mm
3 Air sorting machine 7kw 3500*1000*3000mm
4 Water Bucket Elevator 0.75kw 4000*800*1600mm
5 PU Elevator 0.75kw 2400*800*1800mm
6 Bubble Washing Machine 6.37kw 7000*1200*1400mm
7 Vibrating Dewatering Machine 0.5kw 2000*1000*1600mm
8 Air Drying Machine 15kw 8000*1100*1600mm
9 Diversion conveyor 2.2kw 8000*700*2000mm
10 Quick Freezer 160kw 11500*2200*3000mm
11 Quality Checking Conveyor 0.75kw 7000*500*800mm
12 PU Elevator 0.75kw 2400*800*1800mm
13 Packing machine 8kw /

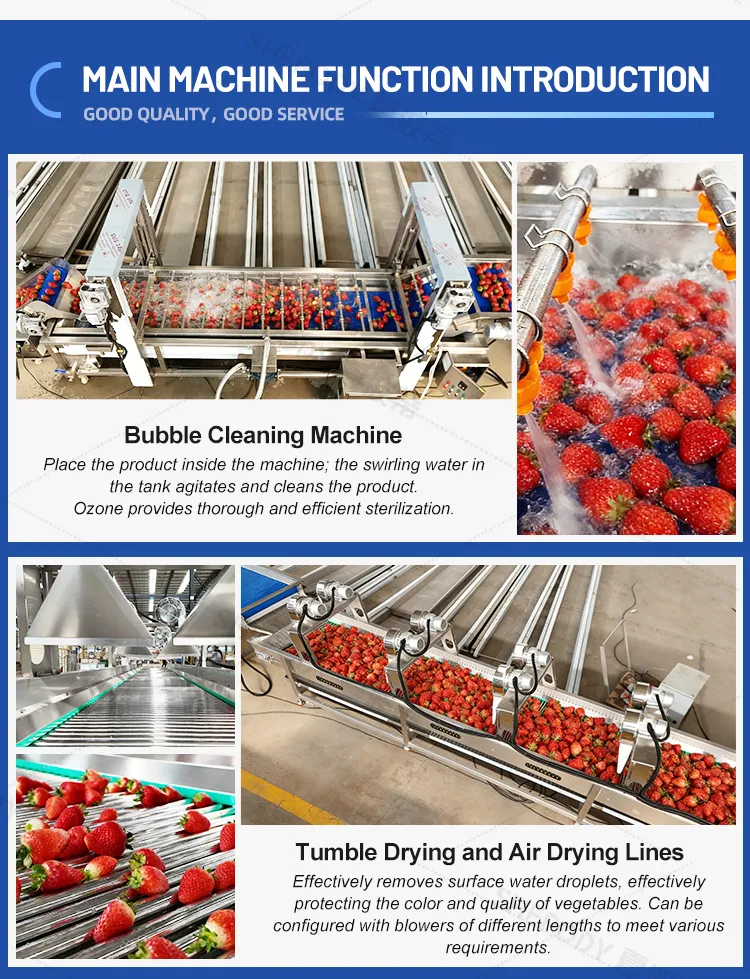

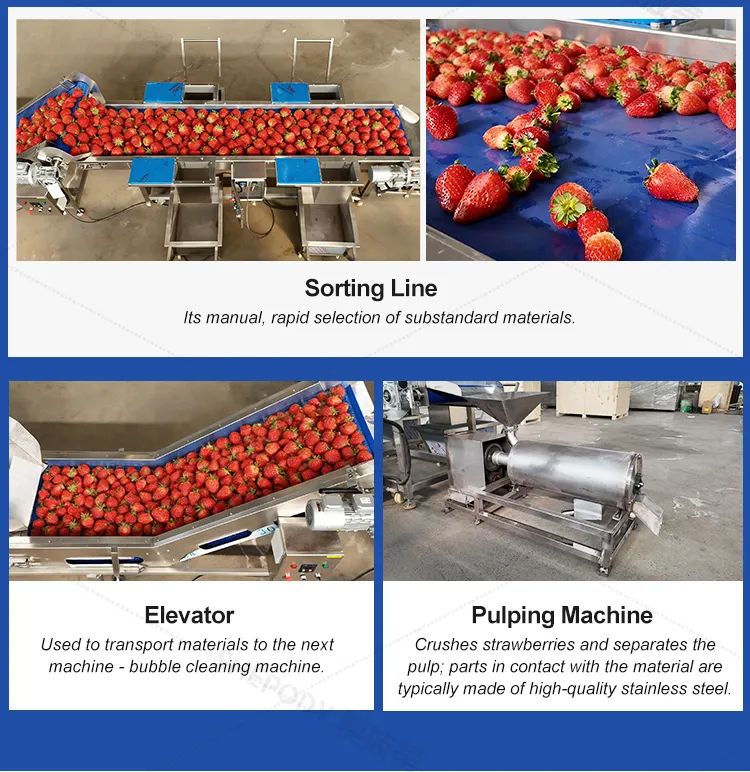

Processing Machine Details 1 Processing Machine Details 2

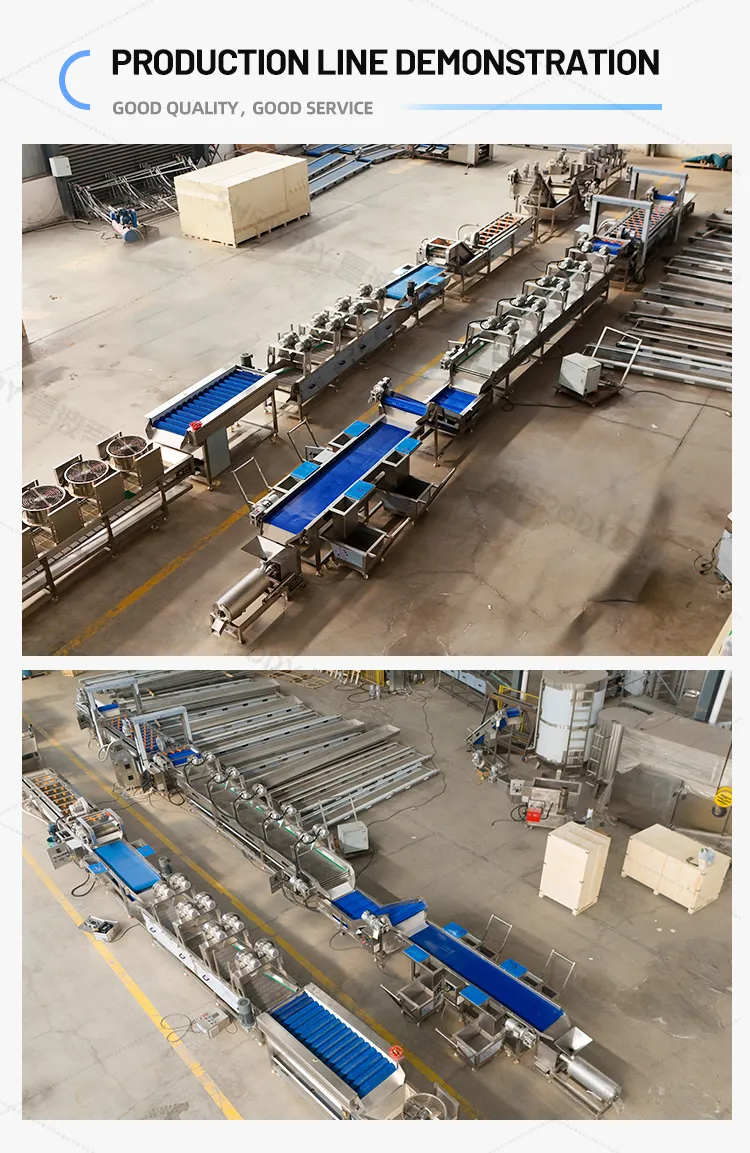

Processing Machine Details 3 Processing Machine Details 4

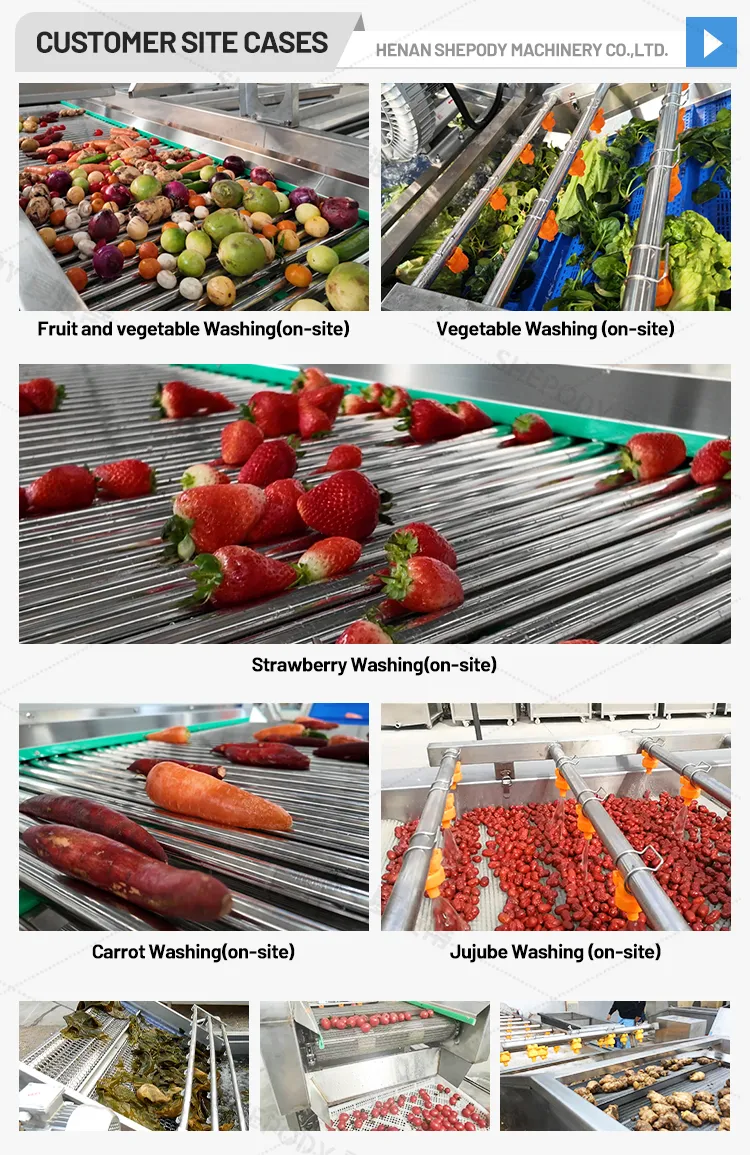

Washing Machine Construction

ملف التعريف - Company Profile

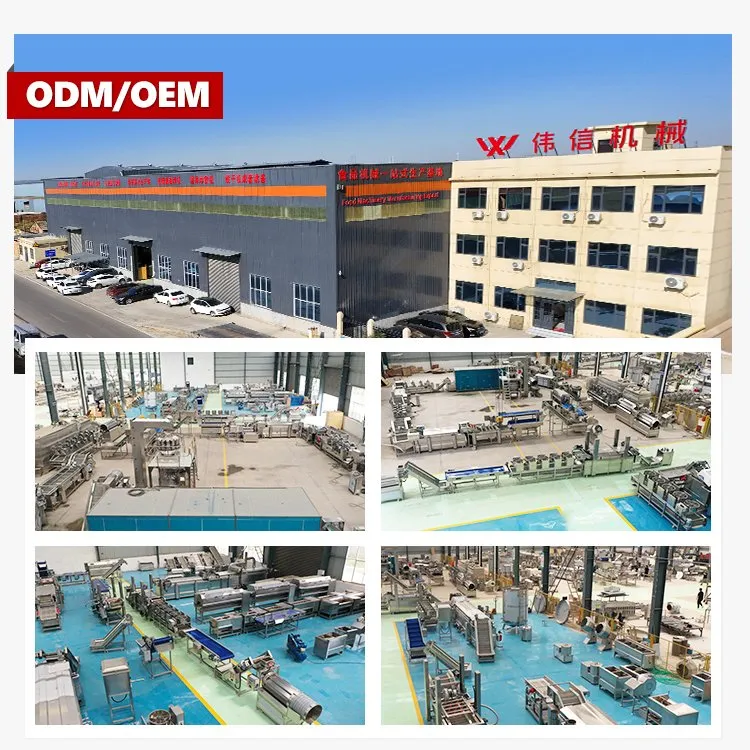

Company Factory Showcase

الشركة المصنعة الرائدة لخطوط إنتاج الأغذية الذكية

We are a professional manufacturer of complete food processing production lines, providing customers with one-stop solutions. With over 15 years of production experience, our products have been exported to 120 countries and regions. The product repurchase rate reached 60%, the customer satisfaction rate reached 98%, and the on-time delivery rate reached 100%.

Main Product Lines:

  • Potato Chips Production Line
  • Frozen French Fries Production Line
  • Vegetable & Fruit Washing Line
  • Vegetable & Fruit Frying Line
  • Vegetable & Fruit Drying Line
  • Quick Freezing Line
  • Nut Roasting Line
Factory Workshop

الشهادات والاعتمادات - Certifications

Certification CE Certificate ISO Certification Document Patent Quality Certification

زيارات العملاء - Customer Visit

Client Visit Uganda
Uganda – Quick Freezer

On January 12, 2026, a client specializing in quick-frozen fruit and vegetable processing visited our factory. They already possessed a fruit and vegetable washing line and were looking to acquire a quick-freezing unit. Their products consist of various raw fruits—primarily mangoes, pineapples, passion fruit, and avocados—requiring freezing temperatures between -35°C and -40°C. We conducted on-site tests with these fruits, and the client was highly satisfied with the frozen results; after discussing a few remaining details, they signed the contract on the spot.

Client Visit Libya
Libya-Farmer - French Fries Production Line

On October 22, 2025, a Libyan client specializing in potato cultivation visited our factory to learn about machinery for processing potatoes into quick-frozen french fries. The client first discussed the processing workflow with our technical team, then addressed the issue of size grading for potatoes of varying dimensions, and conducted a detailed inspection of the welding quality on the machinery in the workshop. Following a full day of in-depth discussions, we successfully addressed all the client's questions; the client acknowledged our professional expertise and spoke highly of our service.

Client Visit Guatemala
Guatemala – Agricultural Processing Enterprise – 100 kg/h Continuous Banana Chip Production Line

On August 26, 2025, a Guatemalan agricultural processor visited our factory for on-site equipment testing. They examined batch processing efficiency, banana chips' color and texture, and machine stability. Fully satisfied with our equipment and professional service, they signed an official export contract immediately. Afterwards, we helped with currency exchange, treated them to dinner, took them shopping for local specialties and toured scenic spots with them. These experiences let the client appreciate traditional culture and consolidated our cooperation.

Client Visit Bangladesh
Bangladesh – 200 kg/h Frozen French Fries Line

On April 25, 2025, the client sent three representatives to visit our factory and tour the production workshop. We had previously developed a customized solution for them online, featuring a complete processing line—including washing, cutting, and frying equipment—complemented by a vacuum oil filter and gear pump. During the visit, we conducted on-site test runs to demonstrate the equipment's performance, processing standards, and filtration efficiency. Impressed by the equipment quality and our company's capabilities, the representatives finalized the cooperation details and signed a formal contract that same day.

Client Visit Kazakhstan
Kazakhstan – Fruit Washing Line

On March 5, 2025, a large fruit and vegetable processing company from Kazakhstan visited our factory. The company specializes in the washing and processing of various fresh fruits. We had designed a production line for them that integrates pre-treatment, intelligent washing, impurity separation, and water recovery. During their visit, we demonstrated the entire strawberry washing process on-site; after observing the actual power and water consumption, the client was highly satisfied with the results, and a contract was successfully signed.

آراء المشترين - Buyers Feedback

Client Feedback and Reviews

التعبئة والتسليم - Packing & Delivery

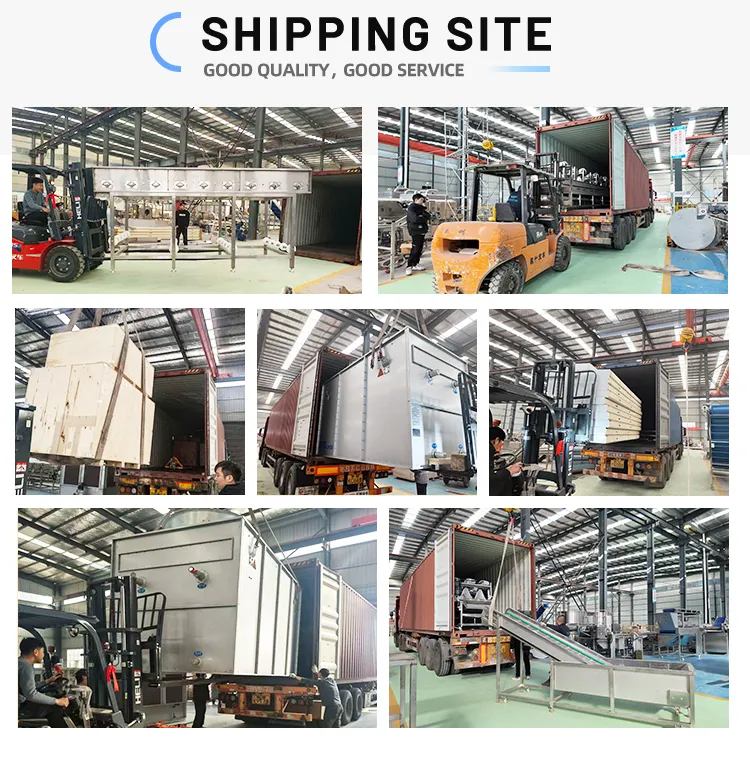

Wooden Box Packaging and Logistics

الأسئلة الشائعة - FAQ

ما هي أنواع الأغذية التي يمكن لخط الغسيل هذا معالجتها؟
يمكن لخط الغسيل الأوتوماتيكي بالكامل معالجة الفواكه بمختلف أنواعها، الخضروات الورقية، الخضروات الجذرية، النباتات الطبية والريزومات، بالإضافة إلى المأكولات البحرية مثل الأسماك والروبيان والمحار.
هل يمكن تخصيص السعة والجهد الكهربائي للماكينات؟
نعم، خطوط الإنتاج لدينا مخصصة بالكامل. يمكن تصميم خط الغسيل ليتناسب مع سعة الإنتاج المطلوبة (مثال: 3000 كجم/ساعة)، وتعديل الجهد الكهربائي ليعمل على 220 فولت أو 380 فولت حسب المعايير الكهربائية لبلدك.
ما هي المواد المستخدمة في تصنيع الماكينات لضمان سلامة الغذاء؟
يتم تصنيع المكونات والهيكل الخارجي للماكينات بالكامل من الفولاذ المقاوم للصدأ بدرجة 304 (SS304)، وهو متوافق تماماً مع المعايير الصحية العالمية لسلامة الأغذية ويتميز بمقاومة عالية للصدأ وسهولة التنظيف.
كيف يساهم خط الغسيل في توفير المياه والطاقة؟
الخط مجهز بنظام لتدوير وتصفية المياه يعيد استخدام المياه النظيفة في مراحل الغسيل المختلفة، مما يقلل من الاستهلاك العام للمياه بشكل ملحوظ مع الحفاظ على أعلى مستويات الكفاءة.
هل تتوفر طريقة سهلة لتنظيف الأجزاء الداخلية لغسالة الفقاعات؟
نعم، تم تجهيز ماكينة غسيل الفقاعات بآلية رفع مدمجة (هيدروليكية أو عبر حبل سلكي) لرفع إطار الحزام الشبكي بالكامل، مما يسهل عملية تنظيف وصيانة الخزان الداخلي والمكونات السفلية بمرونة وأمان.
كيف يتم شحن وتعبئة خط الإنتاج لضمان سلامته؟
يتم شحن وتوصيل الماكينات مغلفة بعناية تامة وموضوعة داخل صناديق خشبية قوية ومتينة مخصصة للتصدير، لضمان حماية المعدات من أي صدمات أو تقلبات جوية أثناء عمليات الشحن الدولي والبري.
